FOLDABLE

H5PET Elastic, Wear-resisting, Memory Foldable Screen



The material is resistant to high temperatures up to 200 without shrinkage and deformation; it can withstand coldness to minus 25 without embrittlement or aging. It can be washed with water or any detergent and the gauze will never soften and will remain stiff. The pleated screen will not be wavy.
Water repellency makes it difficult for water stains to stay and keeps the screen dry. The gauze can be pushed and pulled easily.

The foldable screen net is「 flexible and retractable」


Product Usage

Foldable mesh screen / Special mesh screen for trackless folding screen window

SGS Test Report

H4 PET彈性、耐磨、記憶摺疊網

  • Heat- resisting
  • Washable
  • Clear view

     【Features】

  1. 1.The material of this product is polyester (PET) monofilament. The surface is smooth and non-water absorbing and resistant to creep, fatigue, abrasion, weather and coldness with excellent physical properties.
  2. 2.Each pleated gauze has a "memory" function at each corner(As shown below),The folded corner will not be aged and broken due to wind, sun and rain.



  3. 3.The foldable screen is completely close fitted with a thickness of 100 pleats (as shown in the figure below), and the width is 3.8cm, which is the smallest folding mesh in the world at present, which can greatly reduce the cost of aluminum profiles.

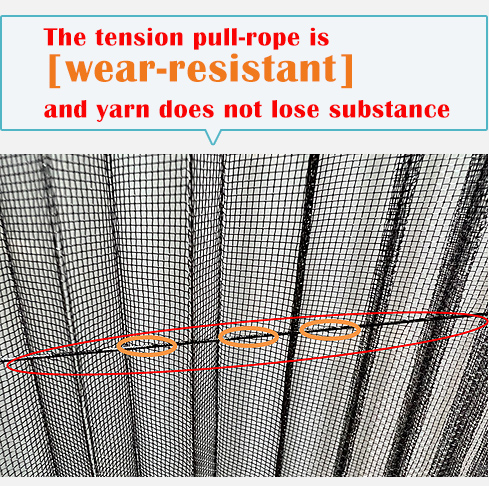

    4.The yarn of the screen mesh is resistant to fatigue and friction, and the diameter of the pulling rope of the folded mesh will not expand continuously due to the friction caused by the pulling of the rope, which can easily lead to intrusion of mosquitoes.



  1. 5.The gauze color is consistent with 100% no color difference
  2. 6.The yarn has a small diameter, light weight and good visual clarity.



    【Video】

    Can be installed in outdoor wind, sun and rain test



    The foldable screen can still be stored in place smoothly after being exposed to ultraviolet rays for a long time



    Foldable Screen entity using video



    For an unfolded one-meter-wide screen, the number of pleats is equivalent to a reduction of 15pleats for other materials, which provides better ventilation.



    High quality and precision fully transparent



    Large Foldable Screen entity using video



    The foldable screen has a "memory" function that it will not be deformed to the extent that it cannot be restored for continuous use due to external force, impact and other factors.



Color Warp Diameter Pleated screen thickness

Mash Number/

Inch
Material Width
Matte Black  / Grey 0.165 mm 100 Pleats /3.8cm 20×20 PET 1.6m - 3.0m
